SAE 100R3 medium pressure hydraulic hose -double fiber braid

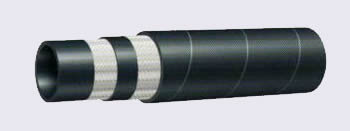

SAE 100R3 medium pressure hose
SAE 100R3 medium pressure hydraulic hose is ideal for medium pressure fuel and oil lines as well as return and suction hoses of hydraulic systems. Two plies of braided textile protect the inner tube in case that the outside cover is broken. Nitrile tube has premium oil resistant and won't react with petroleum- or water-based hydraulic fluids within -40°C to 100°C.
Product description:
Tube: black nitrile;
Cover: black neoprene (MSHA approved);
Reinforcement: two plies of braided textile;
Max working pressure: 1520psi (at 3/16" I.D.);
Working temperature: -40°F to 212°F (-40°C to 100°C);
Inside diameter: 3-16" to 1-1/4";
Min bend radius: 75mm at 3/16" I.D.;
Pressure grade: medium;
Safety factor: 4:1.
Remarks: Meets or exceeds SAE 100R3 textile braid hydraulic hoses are supplied. You kindly advise us your specified requirements.
| SAE 100R3 Medium Pressure Hydraulic Hose | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. | Metric Size |
Inch Size |
SAE Dash Size |
Hose I.D. | Hose O.D. | Max. Working Pressure |
Min. Burst Pressure |
Min Bend Radius |
Weight | ||||
| Min | Max | Min | Max | psi | bar | psi | bar | mm | kg/m | ||||
| LR3-3 | 5 | 3/16 | -3 | 4.5 | 5.4 | 11.9 | 13.5 | 1520 | 105 | 6080 | 420 | 75 | 0.16 |
| LR3-4 | 6.3 | 1/4 | -4 | 6.1 | 7.0 | 13.5 | 15.1 | 1260 | 87 | 5040 | 348 | 75 | 0.18 |
| LR3-5 | 8 | 5/16 | -5 | 7.6 | 8.5 | 16.7 | 18.3 | 1220 | 84 | 4880 | 336 | 100 | 0.27 |
| LR3-6 | 10 | 3/8 | -6 | 9.2 | 10.1 | 18.2 | 19.8 | 1130 | 78 | 4520 | 312 | 100 | 0.31 |
| LR3-8 | 12.5 | 1/2 | -8 | 12.4 | 13.5 | 23 | 24.6 | 1015 | 70 | 4060 | 280 | 125 | 0.45 |
| LR3-10 | 16 | 5/8 | -10 | 15.6 | 16.7 | 26.2 | 27.8 | 885 | 61 | 3540 | 244 | 140 | 0.53 |
| LR3-12 | 19 | 3/4 | -12 | 18.7 | 19.8 | 31 | 32.5 | 750 | 52 | 3000 | 208 | 150 | 0.72 |
| LR3-16 | 25 | 1 | -16 | 25.1 | 26.2 | 36.9 | 39.3 | 570 | 39 | 2280 | 156 | 205 | 0.9 |
| LR3-20 | 31.5 | 1-1/4 | -20 | 31.4 | 32.9 | 42.9 | 46 | 380 | 26 | 1520 | 104 | 250 | 1.07 |
Notes:
- 1MPa=10bar=145psi;
- Bending radius measured on the inside of the bend;
- SAE Dash Size equals to hose I.D. in 1/16's of an inch.
